Nithish Kumar
This is application code developed for RKE project with following features. The requirements are taken from https://cruizbyte.co.in/training-blog/f/remote-keyless-entry.

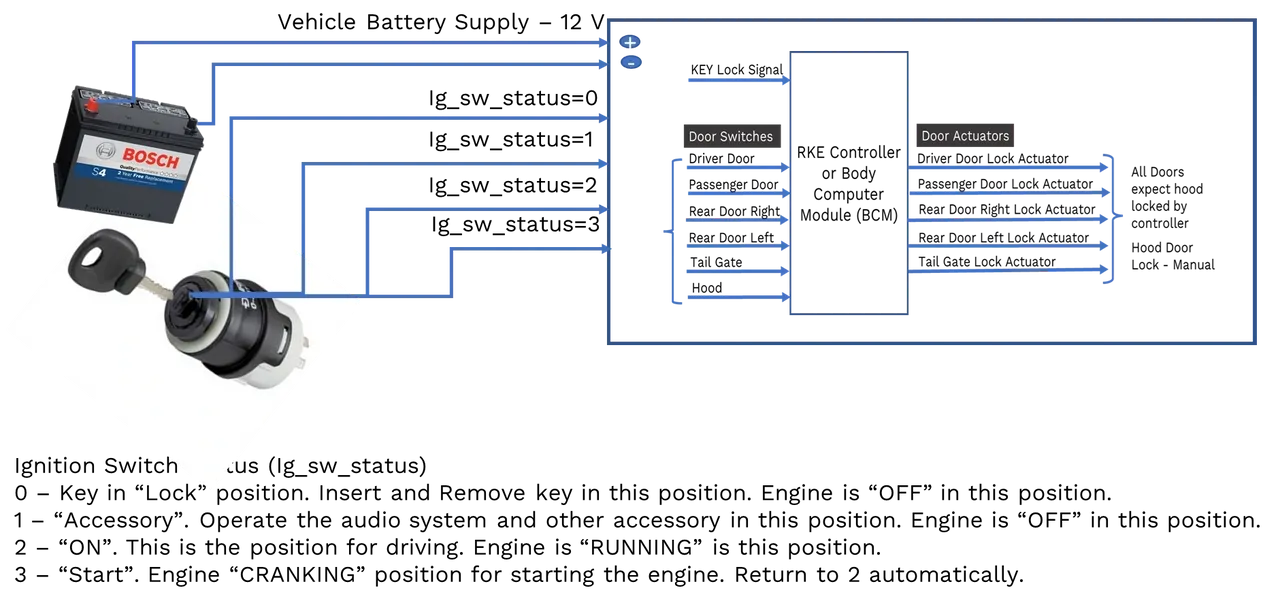

The Block diagram for the feature is given below
PROJECT
– I
REMOTE
KEYLESS ENTRY
(Without
CAN)
/*CREATED BY: NITHISH KUMAR*/
/*SOFTWARE USED : ARDUINO IDE*/
/*====KEY FOB====*/ //BUTTONS PRESENT IN THE REMOTE KEY FOB
int RKE; //RKE KEY FOB
bool lock_BUTTON; //LOCK BUTTON PRESENT IN KEY FOB
bool unlock_BUTTON; //UNLOCK BUTTON PRESENT IN KEY FOB
bool trunk_BUTTON; //TRUNK BUTTON PRESENT IN KEY FOB
/*====BUTTON TIMER====*/ //BUTTON PRESS & HOLD DURATION
int lock_TIMER; //LOCK BUTTON PRESS & HOLD DURATION IN KEY FOB
int unlock_TIMER; //UNLOCK BUTTON PRESS & HOLD DURATION IN KEY FOB
int trunk_TIMER; //TRUNK BUTTON PRESS & HOLD DURATION IN KEY FOB
/*====BUTTON CLICKS====*/ //BUTTON CLICK COUNT
int lock_COUNT; //LOCK BUTTON CLICK COUNT IN KEY FOB
int unlock_COUNT; //UNLOCK BUTTON CLICK COUNT IN KEY FOB
int trunk_COUNT; //TRUNK BUTTON CLICK COUNT IN KEY FOB
/*====CAR SWITCHES====*/ //DOOR SWITCHES IN THE CAR
bool switchStatus; //VEHICLE SWITCH STATUS
bool drv_SWITCH; //DRIVER DOOR SWITCH
bool pass_SWITCH; //PASSENGER DOOR SWITCH
bool releft_SWITCH; //RAER LEFT DOOR SWITCH
bool reright_SWITCH; //REAR RIGHT DOOR SWITCH
bool trunk_SWITCH; //TRUNK DOOR SWITCH
/*====SOLENOID VALVES====*/ //DOOR VALVES IN EACH DOOR OF THE CAR
bool valveStatus; //VEHICLE VALVE STATUS
bool drv_SOLVALVE; //DRIVER DOOR VALVE
bool pass_SOLVALVE; //PASSENGER DOOR VALVE
bool releft_SOLVALVE; //REAR LEFT DOOR VALVE
bool reright_SOLVALVE; //REAR RIGHT DOOR VALVE
bool trunk_SOLVALVE; //TRUNK DOOR VALVE
/*====INDICATION LAMPS====*/ //INDICATION LAMP FEEDBACK
bool headlight; //HEADLIGHT
bool hazR1_LAMP; //FRONT RIGHT TURN LAMP
bool hazR2_LAMP; //REAR RIGHT TURN LAMP
bool hazL1_LAMP; //FRONT LEFT TURN LAMP
bool hazL2_LAMP; //REAR LEFT TURN LAMP
/*====IGNITION STATUS====*/ //KEY CYLINDER STATUS
int ig_status; //1 = LOCK POSITION, 2 = ACCESSORY POSITION, 3 = ON
POSITION
/*====IMPORTANT PARAMETERS====*/
bool child_lock; //CHILD LOCK BUTTON
bool vhl_buzzer; //VEHICLE BUZZER FOR TURN LAMP INDICATORS
bool intr_buzzer; //VEHICLE INTERIOR BUZZER
bool airbag; //AIRBAG
bool horn; //VEHICLE HORN
int vehicle_speed; //VEHICLE SPEED
int timer; //ACTION TIMER
int feed; //VARIABLE USED IN LOOPING STATEMENT
/*====STATES====*/
// 1 = TRUE/ON/HIGH/UNLOCK/OPEN/YES/UNARMED
// 0 = FALSE/OFF/LOW/LOCK/CLOSE/NO/ARMED
void setup()
{
Serial.begin(9600); //Setting up
Serial Communication Baud rate to 9200
}
void loop()
{
if (Serial.available() > 0)
{
RKE = Serial.parseInt();
switch (RKE)
{
case 1:
if ((lock_BUTTON == 1)
&&
(ig_status == 1 ||
ig_status == 2) &&
(drv_SWITCH &&
pass_SWITCH && releft_SWITCH && reright_SWITCH &&
trunk_SWITCH == 0))
{
RKE_LOCK(); //Lock
Function
}
break;
case 2:
if ((unlock_BUTTON == 1)
&&
(ig_status == 1 ||
ig_status == 2) &&
(drv_SWITCH &&
pass_SWITCH && releft_SWITCH && reright_SWITCH &&
trunk_SWITCH == 0))
{
RKE_UNLOCK(); //Unlock
Function
}
break;
case 3:
if ((trunk_BUTTON == 1)
&&
(ig_status == 1 ||
ig_status == 2))
{
RKE_TRUNK(); //Trunk
Function
}
break;
case 4:
if ((unlock_TIMER == 3)
&&
(drv_SOLVALVE
&& pass_SOLVALVE && releft_SOLVALVE && reright_SOLVALVE
== 0) &&
(drv_SWITCH &&
pass_SWITCH && releft_SWITCH && reright_SWITCH == 0) &&
(ig_status == 1 ||
ig_status == 2))
{
RKE_SEARCH(); //Search
Function
}
break;
case 5:
if ((lock_BUTTON == 1)
&& (drv_SWITCH || pass_SWITCH || releft_SWITCH || reright_SWITCH != 1))
{
RKE_THEFT_ALARM();
//Theft Alarm Function
}
break;
case 6:
if ((lock_TIMER == 5)
&&
(valveStatus &&
switchStatus == 0) ||
(valveStatus
&& switchStatus == 1) &&
(ig_status == 1 ||
ig_status == 2))
{
RKE_PANIC_ALARM();
//Panic Alarm Function
}
break;
case 7:
if ((vehicle_speed >=
20) &&
(ig_status == 3)
&&
(drv_SWITCH &&
pass_SWITCH && releft_SWITCH && reright_SWITCH &&
trunk_SWITCH == 0))
{
RKE_AUTO_LOCK(); //Auto
Lock Function
}
break;
case 8:
if ((vehicle_speed == 0)
&&
(ig_status == 2)
&&
(drv_SWITCH &&
pass_SWITCH && releft_SWITCH && reright_SWITCH &&
trunk_SWITCH == 0))
{
RKE_AUTO_UNLOCK();
//Auto Unlock Function
}
break;
case 9:
if (((drv_SWITCH ||
pass_SWITCH || releft_SWITCH || reright_SWITCH != 0) ||
(drv_SOLVALVE ||
pass_SOLVALVE || releft_SOLVALVE || reright_SOLVALVE != 0)) && (timer
>= 30) &&
(drv_SWITCH =
pass_SWITCH = releft_SWITCH = reright_SWITCH = trunk_SWITCH == 0) &&
(ig_status == 1 ||
ig_status == 2 || ig_status == 3))
{
RKE_AUTO_RELOCK();
//Auto Relock Function
}
break;
case 10:
if ((drv_SOLVALVE == 0)
&&
(drv_SWITCH &&
pass_SWITCH && releft_SWITCH && reright_SWITCH &&
trunk_SWITCH == 0) &&
(ig_status == 3))
{
RKE_CENTRAL_LOCK();
//Central lock Function
}
break;
case 11:
if (airbag == 1)
{
RKE_EMERGENCY_UNLOCK();
//Emergency Unlocking
}
break;
case 12:
if (drv_SWITCH =
pass_SWITCH = releft_SWITCH = reright_SWITCH = trunk_SWITCH == 0)
{
RKE_BEEP(); //Beep
Function
}
break;
case 13:
if ((lock_BUTTON == 1)
&&
(drv_SWITCH ||
pass_SWITCH || releft_SWITCH || reright_SWITCH || trunk_SWITCH != 1))
{
RKE_SPECIALS();
//Special Circumstances
}
break;
}
}
}
/*------------------------------------------------RKE_FUNCTIONS------------------------------------------------*/
//------------------------------------------------1. LOCK
void RKE_LOCK()
{// When lock button is pressed, all the valves are locked
drv_SOLVALVE = 0;
pass_SOLVALVE = 0;
releft_SOLVALVE = 0;
reright_SOLVALVE = 0;
trunk_SOLVALVE = 0;
Serial.println("[1]:
VEHICLE LOCK SUCCESSFUL");
Serial.println("LOCK
FEEDBACK ENABLED:"); //user feedback
for (feed = 1; feed <= 1;
feed++)
{
Serial.print("HAZARD
LAMPS AND VEHICLE BUZZER STATUS:");
Serial.println(hazR1_LAMP =
hazR2_LAMP = hazL1_LAMP = hazL2_LAMP = vhl_buzzer = 1);
Serial.print("HAZARD
LAMPS AND VEHICLE BUZZER STATUS:");
Serial.println(hazR1_LAMP =
hazR2_LAMP = hazL1_LAMP = hazL2_LAMP = vhl_buzzer = 0);
}
Serial.println("END");
}
//------------------------------------------------2. UNLOCK
void RKE_UNLOCK()
{// When unlock button is pressed, all the valves are unlocked
drv_SOLVALVE = 1;
pass_SOLVALVE = 1;
releft_SOLVALVE = 1;
reright_SOLVALVE = 1;
Serial.println("[2]:
VEHICLE UNLOCK SUCCESSFUL");
Serial.println("UNLOCK
FEEDBACK ENABLED:");
for (feed = 1; feed <= 2;
feed++)
{
Serial.print("HAZARD
LAMPS AND VEHICLE BUZZER STATUS: ");
Serial.println(hazR1_LAMP =
hazR2_LAMP = hazL1_LAMP = hazL2_LAMP = vhl_buzzer = 1);
Serial.print("HAZARD
LAMPS AND VEHICLE BUZZER STATUS: ");
Serial.println(hazR1_LAMP =
hazR2_LAMP = hazL1_LAMP = hazL2_LAMP = vhl_buzzer = 0);
}
Serial.println("END");
}
//------------------------------------------------3. TRUNK
void RKE_TRUNK()
{// When trunk button is pressed, trunk valve is unlocked
trunk_SOLVALVE = 1;
Serial.println("[3]: TRUNK
UNLOCK SUCCESSFUL");
Serial.println("TRUNK
FEEDBACK ENABLED:");
for (feed = 1; feed <= 2;
feed++)
{
Serial.print("HAZARD
LAMPS STATUS: ");
Serial.println(hazR1_LAMP =
hazR2_LAMP = hazL1_LAMP = hazL2_LAMP = 1);
Serial.print("HAZARD LAMPS STATUS:
");
Serial.println(hazR1_LAMP =
hazR2_LAMP = hazL1_LAMP = hazL2_LAMP = 0);
}
Serial.println("END");
}
//------------------------------------------------4. SEARCH
void RKE_SEARCH()
{// When unlock button is pressed for 3 secs, search function is enabled
Serial.println("[4].
VEHICLE SEARCH ACTIVATED");
Serial.println("SEARCH
FEEDBACK ENABLED:");
for (feed = 1; feed <= 10;
feed++)
{
Serial.print("HAZARD
LAMPS AND VEHICLE BUZZER STATUS: ");
Serial.println(hazR1_LAMP =
hazR2_LAMP = hazL1_LAMP = hazL2_LAMP = vhl_buzzer = 1);
Serial.print("HAZARD
LAMPS AND VEHICLE BUZZER STATUS: ");
Serial.println(hazR1_LAMP =
hazR2_LAMP = hazL1_LAMP = hazL2_LAMP = vhl_buzzer = 0);
}
Serial.println("END");
Serial.println("PRESS AND
HOLD THE 'UNOCK' BUTTON AGAIN TO SEARCH VEHICLE");
if (unlock_COUNT == 2) // When
unlock button is pressed for 2 secs, search function is disabled
{
Serial.print("HAZARD
LAMPS AND VEHICLE BUZZER STATUS: ");
Serial.println(hazR1_LAMP =
hazR2_LAMP = hazL1_LAMP = hazL2_LAMP = vhl_buzzer = 0);
Serial.println("VEHICLE
SEARCH STATUS: DISABLED");
}
}
//------------------------------------------------5. THEFT ALARM
void RKE_THEFT_ALARM()
{// When any of the doors are opened, theft alarm function is enabled
Serial.println("[5]. THEFT
ALARM ACTIVATED");
Serial.println("THEFT ALARM
FEEDBACK ENABLED:");
for (feed = 1; feed <= 10;
feed++)
{
Serial.print("HAZARD
LAMPS AND HORN STATUS: ");
Serial.println(hazR1_LAMP =
hazR2_LAMP = hazL1_LAMP = hazL2_LAMP = horn = 1);
Serial.print("HAZARD
LAMPS AND HORN STATUS: ");
Serial.println(hazR1_LAMP =
hazR2_LAMP = hazL1_LAMP = hazL2_LAMP = horn = 0);
}
Serial.println("END");
if (lock_COUNT == 2) // When the
doors are closed, theft alarm function is disabled
{
Serial.print("HAZARD
LAMPS AND HORN STATUS: ");
Serial.println(hazR1_LAMP =
hazR2_LAMP = hazL1_LAMP = hazL2_LAMP = horn = 0);
Serial.println("THEFT
ALARM STATUS: DISABLED");
}
}
//------------------------------------------------6. PANIC ALARM
void RKE_PANIC_ALARM()
{//when the lock button is pressed for 5 secs, Panic alarm is enabled
Serial.println("[6]. PANIC
ALARM ACTIVATED");
Serial.println("PANIC ALARM
FEEDBACK ENABLED:");
for (feed = 1; feed <= 10;
feed++)
{
Serial.print("HAZARD
LAMPS AND VEHICLE BUZZER STATUS: ");
Serial.println(hazR1_LAMP =
hazR2_LAMP = hazL1_LAMP = hazL2_LAMP = horn = 1);
Serial.print("HAZARD
LAMPS AND VEHICLE BUZZER STATUS: ");
Serial.println(hazR1_LAMP =
hazR2_LAMP = hazL1_LAMP = hazL2_LAMP = horn = 0);
}
Serial.println("END");
Serial.println("PRESS AND
HOLD THE 'UNLOCK' BUTTON AGAIN TO ACTIVATE PANIC ALARM");
}
//------------------------------------------------7. AUTO-LOCK
void RKE_AUTO_LOCK()
{//when the vehicle reaches a speed of 20KMPH, all the valves are locked
automatically
drv_SOLVALVE = 0;
pass_SOLVALVE = 0;
releft_SOLVALVE = 0;
reright_SOLVALVE = 0;
trunk_SOLVALVE = 0;
Serial.println("[7].
AUTO-LOCKING SUCCESSFUL");
Serial.println("END");
}
//------------------------------------------------8. AUTO-UNLOCK
void RKE_AUTO_UNLOCK()
{//when the vehicle is at halt, all the valves are unlocked
automatically
drv_SOLVALVE = 1;
pass_SOLVALVE = 1;
releft_SOLVALVE = 1;
reright_SOLVALVE = 1;
Serial.println("[8].
AUTO-UNLOCKING SUCCESSFUL");
Serial.println("END");
}
//------------------------------------------------9. AUTO-RELOCK
void RKE_AUTO_RELOCK()
{//when the vehicle is remained unlocked for more than 45 secs, all the
valves are locked automatically
drv_SOLVALVE = 0;
pass_SOLVALVE = 0;
releft_SOLVALVE = 0;
reright_SOLVALVE = 0;
trunk_SOLVALVE = 0;
Serial.println("[9].
AUTO-RELOCKING SUCCESSFUL");
Serial.println("END");
}
//------------------------------------------------10. CENTRAL-LOCK
void RKE_CENTRAL_LOCK()
{//when driver door is locked, all the valves are locked
pass_SOLVALVE = 0;
releft_SOLVALVE = 0;
reright_SOLVALVE = 0;
Serial.println("[10].
CENTRAL LOCK SUCCESSFUL");
Serial.println("END");
}
//------------------------------------------------11. EMERGENCY UNLOCK
void RKE_EMERGENCY_UNLOCK()
{//when the vehicle's airbag is released, all the valves are unlocked
drv_SOLVALVE = 1;
pass_SOLVALVE = 1;
releft_SOLVALVE = 1;
reright_SOLVALVE = 1;
trunk_SOLVALVE = 1;
Serial.println("[12].
EMERGENCY UNLOCKING SUCCESSFUL");
for (feed = 1; feed <= 10;
feed++)
{
Serial.print("HAZARD
LAMPS, HEADLIGHT AND HORN STATUS: ");
Serial.println(hazR1_LAMP =
hazR2_LAMP = hazL1_LAMP = hazL2_LAMP = headlight = horn = 1);
Serial.print("HAZARD
LAMPS, HEADLIGHT AND HORN STATUS: ");
Serial.println(hazR1_LAMP =
hazR2_LAMP = hazL1_LAMP = hazL2_LAMP = headlight = horn = 0);
}
Serial.println("END");
}
//------------------------------------------------12. BEEP
void RKE_BEEP()
{// when a door is opened, the beep function is enabled until the door
is closed
if (switchStatus == 1)
{
Serial.println("[13]. INTERIOR
BUZZER ACTIVATED");
for (feed = 1; feed <= 10;
feed++)
{
Serial.print("INTERIOR
BUZZER ENABLED: ");
Serial.println(intr_buzzer =
1);
}
Serial.println("END");
}
else if (switchStatus == 0)
{
Serial.println(intr_buzzer =
0);
Serial.println("INTERIOR
BUZZER STATUS : DISABLED");
Serial.println("END");
}
}
//------------------------------------------------13. SPECIALS
void RKE_SPECIALS()
{//when lock button is pressed when any of the doors are opened, the
buzzer is enabled
Serial.println("[14].
VEHICLE LOCKING UNSUCCESSFUL");
Serial.print("INTERIOR
BUZZER ENABLED: ");
for (feed = 1; feed <= 10;
feed++)
{
Serial.print("INTERIOR
BUZZER ENABLED: ");
Serial.println(intr_buzzer =
1);
}
Serial.println("END");
if (switchStatus == 0)
{
Serial.println(intr_buzzer =
0);
Serial.println("INTERIOR
BUZZER STATUS : DISABLED");
Serial.println("END");
}
}
/**********END OF PROGRAM**********/
PROJECT- II
REMOTE KEYLESS ENTRY
/*CREATED BY:
NITHISH KUMAR*/
/*SOFTWARE USED:
ARDUINO IDE*/
#include
<SPI.h> // Serial Peripheral Interface communication
#include
<mcp2515.h> //CAN interface library
//For CAN message
reception
struct can_frame
canMsgr;
//For CAN message
transmission
struct can_frame
canMsg1; //Ignition OFF
struct can_frame
canMsg2; //Ignition ACC
struct can_frame
canMsg3; //Ignition ON
struct can_frame
canMsg4; //Driver Door
struct can_frame
canMsg5; //Passenger Door
struct can_frame
canMsg6; //Rear Right Door
struct can_frame
canMsg7; //Rear Left Door
struct can_frame
canMsg8; //Lock
struct can_frame
canMsg9; //Un Lock
struct can_frame
canMsg10; //Trunk
struct can_frame
canMsg11; //Search
struct can_frame
canMsg12; //Theft Alarm
struct can_frame
canMsg13; //Panic Alarm
struct can_frame
canMsg14; //Auto Lock
struct can_frame
canMsg15; //Auto Unlock
struct can_frame
canMsg16; //Auto Relock
struct can_frame
canMsg17; //Center Lock
struct can_frame
canMsg18; //Emergency unlocking
struct can_frame
canMsg19; //Special Circumstances
struct can_frame
canMsg20; //Beep Function
struct can_frame
canMsg21; //Mute Function
MCP2515
mcp2515(10); //Working with Arduino UNO
/*====CAN
IDs====*/
int id_400[1]; //Ignition
status
int id_425[1];
//Door switch status
int id_450[1];
//Key Fob status
/*====KEY
FOB====*/ //BUTTONS IN THE REMOTE KEY FOB
int RKE; //RKE KEY
FOB
bool lock_BUTTON;
//LOCK BUTTON PRESENT IN KEY FOB
bool
unlock_BUTTON; // UNLOCK BUTTON PRESENT IN KEY FOB
bool trunk_BUTTON;
// TRUNK BUTTON PRESENT IN KEY FOB
/*====BUTTON
TIMER====*/ //BUTTON PRESS & HOLD DURATION
int lock_TIMER;
//LOCK BUTTON PRESS & HOLD DURATION IN KEY FOB
int unlock_TIMER;
//UNLOCK BUTTON PRESS & HOLD DURATION IN KEY FOB
int trunk_TIMER;
//TRUNK BUTTON PRESS & HOLD DURATION IN KEY FOB
/*====BUTTON
CLICKS====*/ //BUTTON CLICK COUNT
int lock_COUNT;
//LOCK BUTTON CLICK COUNT IN KEY FOB
int unlock_COUNT;
//UNLOCK BUTTON CLICK COUNT IN KEY FOB
int trunk_COUNT;
//TRUNK BUTTON CLICK COUNT IN KEY FOB
/*====CAR
SWITCHES====*/ //DOOR SWITCHES IN THE CAR
bool switchStatus;
//VEHICLE SWITCH STATUS
bool drv_SWITCH;
//DRIVER DOOR SWITCH
bool pass_SWITCH;
//PASSENGER DOOR SWITCH
bool
releft_SWITCH; //RAER LEFT DOOR SWITCH
bool reright_SWITCH;
//REAR RIGHT DOOR SWITCH
bool trunk_SWITCH;
//TRUNK DOOR SWITCH
/*====SOLENOID
VALVES====*/ //DOOR VALVES IN EACH DOOR OF THE CAR
bool valveStatus;
//VEHICLE VALVE STATUS
bool drv_SOLVALVE;
//DRIVER DOOR VALVE
bool
pass_SOLVALVE; //PASSENGER DOOR VALVE
bool
releft_SOLVALVE; //REAR LEFT DOOR VALVE
bool
reright_SOLVALVE; //REAR RIGHT DOOR VALVE
bool
trunk_SOLVALVE; //TRUNK DOOR VALVE
/*====INDICATION
LAMPS====*/ //INDICATION LAMP FEEDBACK
bool headlight;
//HEADLIGHT
bool hazR1_LAMP;
//FRONT RIGHT TURN LAMP
bool hazR2_LAMP;
//REAR RIGHT TURN LAMP
bool hazL1_LAMP;
//FRONT LEFT TURN LAMP
bool hazL2_LAMP;
//REAR LEFT TURN LAMP
/*====IGNITION
STATUS====*/ //KEY CYLINDER STATUS
int ig_status;
//IGNITION STATUS
int ig_status_OFF;
//LOCK POSITION
int ig_status_ACC;
//ACCESSORY POSITION
int ig_status_ON;
//ON POSITION
/*====IMPORTANT
PARAMETERS====*/
bool child_lock;
//CHILD LOCK BUTTON
bool vhl_buzzer;
//VEHICLE BUZZER FOR TURN LAMP INDICATORS
bool intr_buzzer;
//VEHICLE INTERIOR BUZZER
bool airbag;
//AIRBAG
bool horn;
//VEHICLE HORN
int vehicle_speed;
//VEHICLE SPEED
int timer;
//ACTION TIMER
int feed;
//VARIABLE USED IN LOOPING STATEMENT
/*====STATES====*/
// 1 =
TRUE/ON/HIGH/UNLOCK/OPEN/YES/UNARMED
// 0 =
FALSE/OFF/LOW/LOCK/CLOSE/NO/ARMED
void setup()
{
//Starting Serial communication and setting
baud rate at 9600
Serial.begin(9600);
//declaration of CAN ID, CAN data length and
CAN data
canMsg1.can_id = 0x100; //Ignition OFF
canMsg1.can_dlc = 1;
canMsg1.data[0] = 0x01;
canMsg2.can_id = 0x105; //Ignition ACC
canMsg2.can_dlc = 1;
canMsg2.data[0] = 0x02;
canMsg3.can_id = 0x110; //Ignition ON
canMsg3.can_dlc = 1;
canMsg3.data[0] = 0x04;
canMsg4.can_id = 0x115; //Driver Door
canMsg4.can_dlc = 1;
canMsg4.data[0] = 0x08;
canMsg5.can_id = 0x120; //Passenger Door
canMsg5.can_dlc = 1;
canMsg5.data[0] = 0x01;
canMsg6.can_id = 0x125; //Rear Left
canMsg6.can_dlc = 1;
canMsg6.data[0] = 0x02;
canMsg7.can_id = 0x130; //Rear Right
canMsg7.can_dlc = 1;
canMsg7.data[0] = 0x04;
canMsg8.can_id = 0x135; //Lock
canMsg8.can_dlc = 1;
canMsg8.data[0] = 0x08;
canMsg9.can_id = 0x140; //UnLock
canMsg9.can_dlc = 1;
canMsg9.data[0] = 0x01;
canMsg10.can_id = 0x145; //Trunk
canMsg10.can_dlc = 1;
canMsg10.data[0] = 0x02;
canMsg11.can_id = 0x150; //Search
canMsg11.can_dlc = 1;
canMsg11.data[0] = 0x04;
canMsg12.can_id = 0x155; //Theft Alarm
canMsg12.can_dlc = 1;
canMsg12.data[0] = 0x08;
canMsg13.can_id = 0x160; //Panic Alarm
canMsg13.can_dlc = 1;
canMsg13.data[0] = 0x01;
canMsg14.can_id = 0x165; //Auto Lock
canMsg14.can_dlc = 1;
canMsg14.data[0] = 0x01;
canMsg15.can_id = 0x170; //Auto Unlock
canMsg15.can_dlc = 1;
canMsg15.data[0] = 0x01;
canMsg16.can_id = 0x175; //Auto Relock
canMsg16.can_dlc = 1;
canMsg16.data[0] = 0x01;
canMsg17.can_id = 0x180; //Center Lock
canMsg17.can_dlc = 1;
canMsg17.data[0] = 0x01;
canMsg18.can_id = 0x185; //Emergency Unlocking
canMsg18.can_dlc = 1;
canMsg18.data[0] = 0x01;
canMsg19.can_id = 0x190; //Special Circumstances
canMsg19.can_dlc = 1;
canMsg19.data[0] = 0x01;
canMsg20.can_id = 0x205; //Beep Function
canMsg20.can_dlc = 1;
canMsg20.data[0] = 0x1;
canMsg21.can_id = 0x210; //Mute
canMsg21.can_dlc = 1;
canMsg21.data[0] = 0x1;
mcp2515.reset();
mcp2515.setBitrate(CAN_500KBPS, MCP_8MHZ);
//setting bitrate for can protocol
mcp2515.setNormalMode(); //initialization of
normal mode
}
void loop()
{
//To read the CAN messages
if (mcp2515.readMessage(&canMsgr) ==
MCP2515::ERROR_OK)
{
switch (canMsgr.can_id)
{
case (0x400): //CAN MSG_ID - 400 for
Ignition Status
for (int i = 0; i < canMsgr.can_dlc;
i++)
{
id_400[i] = (canMsgr.data[i]);
Serial.println("CAN Message ID -
400");
}
switch (id_400[0])
{
case 1:
ig_status = ig_status_OFF;
//Setting ignition status as OFF
Serial.println("Ignition
OFF");
Serial.println();
RKE_AUTO_UNLOCK(); //Auto Unlock
mcp2515.sendMessage(&canMsg1);
//CAN message declaration
break;
case 2:
ig_status = ig_status_ACC;
//Setting ignition status as ACC
Serial.println("Ignition
ACC");
RKE_PANIC_ALARM(); //Panic Alarm
RKE_CENTRAL_LOCK(); //Center Lock
Serial.println();
mcp2515.sendMessage(&canMsg2);
break;
case 4:
ig_status = ig_status_ON; //Setting
ignition status as ON
Serial.println("Ignition
ON");
Serial.println();
RKE_AUTO_LOCK(); //Auto Lock
mcp2515.sendMessage(&canMsg3);
break;
}
Serial.println();
break;
case (0x425): //CAN MSG_ID - 425 for Door
Switch Status
for (int i = 0; i < canMsgr.can_dlc;
i++)
{
id_425[i] = (canMsgr.data[i]);
Serial.println("CAN Message ID -
425");
}
switch (id_425[0])
{
case 1:
drv_SWITCH = 0; //Initially Driver
door is closed
Serial.println("Driver door
Switch");
Serial.println();
mcp2515.sendMessage(&canMsg4);
break;
case 2:
pass_SWITCH = 0; //Initially
Passenger door is closed
Serial.println("Passenger door
Switch");
Serial.println();
mcp2515.sendMessage(&canMsg5);
break;
case 4:
reright_SWITCH = 0; //Initially
Rear Right door is closed
Serial.println("Rear Right
door Switch");
Serial.println();
mcp2515.sendMessage(&canMsg6);
break;
case 8:
releft_SWITCH = 0; //Initially Rear
Left door is closed
Serial.println("Rear Left door
Switch");
Serial.println();
mcp2515.sendMessage(&canMsg7);
break;
}
Serial.println();
break;
case (0x450): //CAN MSG_ID - 450 for Key
Fob Status
for (int i = 0; i < canMsgr.can_dlc;
i++)
{
id_450[i] = (canMsgr.data[i]);
Serial.println("CAN Message ID -
450");
}
switch (id_450[0])
{
case 1:
lock_BUTTON = 1; //Lock button is
clicked
RKE_LOCK(); //lock function enabled
RKE_THEFT_ALARM(); //Theft Alarm
enabled
RKE_SPECIALS(); //Special
Circumstances enabled
Serial.println("Lock");
Serial.println();
break;
case 2:
unlock_BUTTON = 1; //Unlock button
is clicked
RKE_UNLOCK(); //Unlock function
enabled
RKE_SEARCH(); //Search enabled
Serial.println("Unlock");
Serial.println();
break;
case 4:
trunk_BUTTON = 1; //Trunk button is
clicked
RKE_TRUNK(); //Trunk enabled
Serial.println("Trunk");
Serial.println();
break;
case 8:
vehicle_speed = 0; //Vehicle speed
reaches 0 KMPH
RKE_AUTO_RELOCK(); //Auto Relock
enabled
RKE_EMERGENCY_UNLOCK(); //Emergency
Unlock enabled
Serial.println("Trunk");
Serial.println();
break;
}
Serial.println();
break;
}
}
}
/*------------------------------------------------RKE_FUNCTIONS------------------------------------------------*/
//------------------------------------------------
LOCK
//Lock function
void RKE_LOCK()
{
if ((lock_BUTTON == 1) &&
(ig_status == 1 || ig_status == 2)
&&
(drv_SWITCH && pass_SWITCH
&& releft_SWITCH && reright_SWITCH && trunk_SWITCH ==
0))
{
drv_SOLVALVE = 0;
pass_SOLVALVE = 0;
releft_SOLVALVE = 0;
reright_SOLVALVE = 0;
trunk_SOLVALVE = 0;
Serial.println("[1]: VEHICLE LOCK
SUCCESSFUL");
mcp2515.sendMessage(&canMsg8);
Serial.println("LOCK FEEDBACK
ENABLED:"); //User feedback when lock function is activated
for (feed = 1; feed <= 1; feed++)
{
Serial.print("HAZARD LAMPS AND
VEHICLE BUZZER STATUS:");
Serial.println(hazR1_LAMP = hazR2_LAMP =
hazL1_LAMP = hazL2_LAMP = vhl_buzzer = 1);
Serial.print("HAZARD LAMPS AND
VEHICLE BUZZER STATUS:");
Serial.println(hazR1_LAMP = hazR2_LAMP =
hazL1_LAMP = hazL2_LAMP = vhl_buzzer = 0);
}
Serial.println("END \n");
}
}
//------------------------------------------------
UNLOCK
void RKE_UNLOCK()
{
if ((unlock_BUTTON == 1) &&
(ig_status == 1 || ig_status == 2)
&&
(drv_SWITCH && pass_SWITCH
&& releft_SWITCH && reright_SWITCH && trunk_SWITCH ==
0))
{
drv_SOLVALVE = 1;
pass_SOLVALVE = 1;
releft_SOLVALVE = 1;
reright_SOLVALVE = 1;
Serial.println("[2]: VEHICLE UNLOCK
SUCCESSFUL");
mcp2515.sendMessage(&canMsg9);
Serial.println("UNLOCK FEEDBACK
ENABLED:");
for (feed = 1; feed <= 2; feed++)
{
Serial.print("HAZARD LAMPS AND
VEHICLE BUZZER STATUS: ");
Serial.println(hazR1_LAMP = hazR2_LAMP =
hazL1_LAMP = hazL2_LAMP = vhl_buzzer = 1);
Serial.print("HAZARD LAMPS AND
VEHICLE BUZZER STATUS: ");
Serial.println(hazR1_LAMP = hazR2_LAMP =
hazL1_LAMP = hazL2_LAMP = vhl_buzzer = 0);
}
Serial.println("END");
}
}
//------------------------------------------------
TRUNK
void RKE_TRUNK()
{
if ((trunk_BUTTON == 1) &&
(drv_SOLVALVE || pass_SOLVALVE ||
releft_SOLVALVE || reright_SOLVALVE == 1) &&
(drv_SWITCH || pass_SWITCH ||
releft_SWITCH || reright_SWITCH == 0) &&
(ig_status == 1 || ig_status == 2))
{
trunk_SOLVALVE = 1;
Serial.println("[3]: TRUNK UNLOCK
SUCCESSFUL");
mcp2515.sendMessage(&canMsg10);
Serial.println("TRUNK FEEDBACK
ENABLED:");
for (feed = 1; feed <= 2; feed++)
{
Serial.print("HAZARD LAMPS STATUS:
");
Serial.println(hazR1_LAMP = hazR2_LAMP =
hazL1_LAMP = hazL2_LAMP = 1);
Serial.print("HAZARD LAMPS STATUS:
");
Serial.println(hazR1_LAMP = hazR2_LAMP =
hazL1_LAMP = hazL2_LAMP = 0);
}
Serial.println("END");
}
}
//------------------------------------------------
SEARCH
void RKE_SEARCH()
{
if ((unlock_TIMER == 3) &&
(drv_SOLVALVE || pass_SOLVALVE ||
releft_SOLVALVE || reright_SOLVALVE == 1) &&
(drv_SWITCH || pass_SWITCH ||
releft_SWITCH || reright_SWITCH == 1) &&
(ig_status == 1 || ig_status == 2))
{
Serial.println("[4]. VEHICLE SEARCH
ACTIVATED");
mcp2515.sendMessage(&canMsg11);
Serial.println("SEARCH FEEDBACK
ENABLED:");
for (feed = 1; feed <= 10; feed++)
{
Serial.print("HAZARD LAMPS AND
VEHICLE BUZZER STATUS: ");
Serial.println(hazR1_LAMP = hazR2_LAMP =
hazL1_LAMP = hazL2_LAMP = vhl_buzzer = 1);
Serial.print("HAZARD LAMPS AND
VEHICLE BUZZER STATUS: ");
Serial.println(hazR1_LAMP = hazR2_LAMP =
hazL1_LAMP = hazL2_LAMP = vhl_buzzer = 0);
}
Serial.println("END");
Serial.println("PRESS AND HOLD THE
'UNOCK' BUTTON AGAIN TO SEARCH VEHICLE");
}
else if (unlock_COUNT == 2)
{
Serial.print("HAZARD LAMPS AND VEHICLE
BUZZER STATUS: ");
Serial.println(hazR1_LAMP = hazR2_LAMP =
hazL1_LAMP = hazL2_LAMP = vhl_buzzer = 0);
Serial.println("VEHICLE SEARCH STATUS:
DISABLED");
mcp2515.sendMessage(&canMsg21);
}
}
//------------------------------------------------
THEFT ALARM
void RKE_THEFT_ALARM()
{
if ((valveStatus || switchStatus == 0))
{
Serial.println("[5]. THEFT ALARM
ACTIVATED");
mcp2515.sendMessage(&canMsg12);
Serial.println("THEFT ALARM FEEDBACK
ENABLED:");
for (feed = 1; feed <= 10; feed++)
{
Serial.print("HAZARD LAMPS AND HORN
STATUS: ");
Serial.println(hazR1_LAMP = hazR2_LAMP =
hazL1_LAMP = hazL2_LAMP = horn = 1);
Serial.print("HAZARD LAMPS AND HORN
STATUS: ");
Serial.println(hazR1_LAMP = hazR2_LAMP =
hazL1_LAMP = hazL2_LAMP = horn = 0);
}
Serial.println("END");
if (lock_COUNT == 2)
{
Serial.print("HAZARD LAMPS AND HORN
STATUS: ");
Serial.println(hazR1_LAMP = hazR2_LAMP =
hazL1_LAMP = hazL2_LAMP = horn = 0);
Serial.println("THEFT ALARM STATUS:
DISABLED");
mcp2515.sendMessage(&canMsg21);
}
}
}
//------------------------------------------------
PANIC ALARM
void
RKE_PANIC_ALARM()
{
if ((valveStatus && switchStatus ==
0) &&
(valveStatus && switchStatus ==
1) &&
(ig_status == 1 || ig_status == 2 ||
ig_status == 3))
{
Serial.println("[6]. PANIC ALARM
ACTIVATED");
mcp2515.sendMessage(&canMsg13);
Serial.println("PANIC ALARM FEEDBACK
ENABLED:");
for (feed = 1; feed <= 10; feed++)
{
Serial.print("HAZARD LAMPS AND
VEHICLE BUZZER STATUS: ");
Serial.println(hazR1_LAMP = hazR2_LAMP =
hazL1_LAMP = hazL2_LAMP = horn = 1);
Serial.print("HAZARD LAMPS AND
VEHICLE BUZZER STATUS: ");
Serial.println(hazR1_LAMP = hazR2_LAMP =
hazL1_LAMP = hazL2_LAMP = horn = 0);
}
Serial.println("END");
Serial.println("PRESS AND HOLD THE
'UNLOCK' BUTTON AGAIN TO ACTIVATE PANIC ALARM");
}
}
//------------------------------------------------
AUTO-LOCK
void
RKE_AUTO_LOCK()
{
if ((vehicle_speed >= 20) &&
(ig_status == 1) &&
(drv_SWITCH && pass_SWITCH
&& releft_SWITCH && reright_SWITCH && trunk_SWITCH ==
0))
{
drv_SOLVALVE = 0;
pass_SOLVALVE = 0;
releft_SOLVALVE = 0;
reright_SOLVALVE = 0;
trunk_SOLVALVE = 0;
Serial.println("[7]. AUTO-LOCKING
SUCCESSFUL");
Serial.println("END");
mcp2515.sendMessage(&canMsg14);
}
}
//------------------------------------------------
AUTO-UNLOCK
void
RKE_AUTO_UNLOCK()
{
if ((vehicle_speed == 0) &&
(ig_status == 1 || ig_status == 2)
&&
(drv_SWITCH && pass_SWITCH
&& releft_SWITCH && reright_SWITCH && trunk_SWITCH ==
0))
{
drv_SOLVALVE = 1;
pass_SOLVALVE = 1;
releft_SOLVALVE = 1;
reright_SOLVALVE = 1;
Serial.println("[8]. AUTO-UNLOCKING
SUCCESSFUL");
Serial.println("END");
mcp2515.sendMessage(&canMsg15);
}
}
//------------------------------------------------
AUTO-RELOCK
void
RKE_AUTO_RELOCK()
{
if ((valveStatus = 1) && (timer >=
30) &&
(drv_SWITCH = pass_SWITCH = releft_SWITCH =
reright_SWITCH = trunk_SWITCH == 0) &&
(ig_status == 1 || ig_status == 2 ||
ig_status == 3))
{
Serial.println("[9]. AUTO-RELOCKING
SUCCESSFUL");
Serial.println("END");
mcp2515.sendMessage(&canMsg16);
}
}
//------------------------------------------------
CENTRAL-LOCK
void
RKE_CENTRAL_LOCK()
{
if ((drv_SOLVALVE == 0) &&
(drv_SWITCH && pass_SWITCH
&& releft_SWITCH && reright_SWITCH && trunk_SWITCH ==
0) &&
(ig_status == 1 || ig_status == 2 ||
ig_status == 3))
{
pass_SOLVALVE = 0;
releft_SOLVALVE = 0;
reright_SOLVALVE = 0;
Serial.println("[10]. CENTRAL LOCK
SUCCESSFUL");
Serial.println("END");
mcp2515.sendMessage(&canMsg17);
}
}
//------------------------------------------------
EMERGENCY UNLOCK
void
RKE_EMERGENCY_UNLOCK()
{
if (airbag == 1)
{
drv_SOLVALVE = 1;
pass_SOLVALVE = 1;
releft_SOLVALVE = 1;
reright_SOLVALVE = 1;
trunk_SOLVALVE = 1;
Serial.println("[12]. EMERGENCY
UNLOCKING SUCCESSFUL");
mcp2515.sendMessage(&canMsg18);
for (feed = 1; feed <= 10; feed++)
{
Serial.print("HAZARD LAMPS,
HEADLIGHT AND HORN STATUS: ");
Serial.println(hazR1_LAMP = hazR2_LAMP =
hazL1_LAMP = hazL2_LAMP = headlight = horn = 1);
Serial.print("HAZARD LAMPS,
HEADLIGHT AND HORN STATUS: ");
Serial.println(hazR1_LAMP = hazR2_LAMP =
hazL1_LAMP = hazL2_LAMP = headlight = horn = 0);
}
Serial.println("END");
}
}
//------------------------------------------------
BEEP
void RKE_BEEP()
{
if (switchStatus == 1)
{
Serial.println("[13]. INTERIOR BUZZER
ACTIVATED");
mcp2515.sendMessage(&canMsg20);
for (feed = 1; feed <= 10; feed++)
{
Serial.print("INTERIOR BUZZER
ENABLED: ");
Serial.println(intr_buzzer = 1);
}
Serial.println("END");
}
else if (switchStatus == 0)
{
Serial.println(intr_buzzer = 0);
Serial.println("INTERIOR BUZZER STATUS
: DISABLED");
Serial.println("END");
mcp2515.sendMessage(&canMsg21);
}
}
//------------------------------------------------
SPECIALS
void
RKE_SPECIALS()
{
if ((lock_BUTTON == 1) &&
(drv_SOLVALVE || pass_SOLVALVE || releft_SOLVALVE
|| reright_SOLVALVE || trunk_SOLVALVE == 1) ||
(drv_SWITCH || pass_SWITCH ||
releft_SWITCH || reright_SWITCH || trunk_SWITCH == 1))
{
Serial.println("[14]. VEHICLE LOCKING
UNSUCCESSFUL");
Serial.print("INTERIOR BUZZER ENABLED:
");
mcp2515.sendMessage(&canMsg19);
Serial.println(intr_buzzer = 1);
Serial.println("END");
}
if (switchStatus == 0)
{
Serial.println(intr_buzzer = 0);
Serial.println("INTERIOR BUZZER STATUS
: DISABLED");
Serial.println("END");
mcp2515.sendMessage(&canMsg21);
}
}
/**********END
OF PROGRAM**********/
Development of Instrument Cluster
The tell-Tles in the instrument cluster is given below
PROJECT - III
INSTRUMENT CLUSTER TELL
TALES AND WARNINGS
/*CREATED BY:
NITHISH KUMAR*/
/*SOFTWARE USED:
ARDUINO IDE*/
#include
<SPI.h> // Serial Peripheral Interface communication
#include
<mcp2515.h> //CAN interface library
//For CAN message reception
struct can_frame
canMsgr;
//For CAN message
transmission
struct can_frame
BCMMsg1; //BCM Message 0x406
struct can_frame
EMSMsg2; //EMS Message 0x411
struct can_frame
EPSMsg3; //EPS Message 0x416
struct can_frame
ESPMsg4; //ESP Message 0x421
struct can_frame
SRSMsg5; //SRS Message 0x431
struct can_frame
TCCUMsg6; //TCCU Message 0x436
struct can_frame
TCUMsg7; //TCU Message 0x441
struct can_frame
TPMSMsg8; //TPMS Message 0x446
MCP2515
mcp2515(10); //Working on Arduino UNO
/*BODY CONTROL
MODULE*/
int BCMmsg_405[8];
//BCM Message - 0x405
//BCM Signals
int BCM_FogFront;
int BCM_FogRear;
int
BCM_VehicleArmed;
int
BCM_HeadHighBeam;
int
BCM_HazardLampLeft[2];
int
BCM_HazardLampRight[2];
int
BCM_SwitchFrontLeft;
int BCM_SwitchFrontRight;
int
BCM_SwitchRearLeft;
int
BCM_SwitchRearRight;
int
BCM_DoorTailGate;
int BCM_DoorAjar;
int
BCM_LowWasherFluid;
/*ENGINE
MANAGEMENT SYSTEM*/
int EMSmsg_410[8];
//EMS Message 0x410
//EMS Signals
int EMS_GlowPlug;
int
EMS_WaterinFuel;
int
EMS_CruiseControl[2];
int
EMS_EngineOilPress;
int
EMS_CheckEngine[2];
int EMS_OBDCheck;
int
EMS_EngineSpeed[8];
int EMS_StartStop;
int
EMS_BatteryCharging;
int EMS_DPFLamp;
int EMS_DEFLamp;
int
EMS_ReducedPower;
/*ELECTRIC POWER
STEERING*/
int EPSmsg_415;//EPS
Message 0x415
//EPS Signal
int
EPS_PowerSteering;
/*ELECTRONIC
STABILITY PROGRAM*/
int
ESPmsg_420[8];//ESP Message 0x420
//ESP Signals
int
ESP_VehicleSpeed[8];
int
ESP_WheelFrontLeftSpeed[8];
int
ESP_WheelFrontRightSpeed[8];
int ESP_WheelRearLeftSpeed[8];
int
ESP_WheelRearRightSpeed[8];
int
ESP_VehicleOverspeed;
int ESP_HandBrake;
int ESP_ABS;
int
ESP_ESPLamp[2];
/*SUPPLEMETAL
RESTRAINT SYSTEM*/
int SRSmsg_430;
//SRS Message 0x430
//SRS Signals
int SRS_SeatBelt;
int
SRS_PassAirbagCutOff;
int SRS_AirBag;
/*TRANSFER CASE
CONTROL MODULE*/
int TCCMmsg_435;
//TCCU Message 0x435
// TCCM Signals
int
TCCM_FWDWarn[2];
int TCCM_FWDLock;
/*TRANSISSION
CONTROL UNIT*/
int TCUmsg_440;
//TCU Message 0x405
//TCU Signal
int
TCU_TransmTemp;
/*TYRE PRESSURE
MONITORING SYSTEM*/
int
TPMSmsg_445[8]; //TPMS Message 0x405
//TPMS Signal
int
TPMS_TyreFrontLeftPress[4];
int
TPMS_TyreFrontRightPress[4];
int
TPMS_TyreRearLeftPress[4];
int
TPMS_TyreRearRightPress[4];
int
TPMS_TiretronicsLamp;
void setup()
{
//Setting up Serial communication Baud rate
to 115200
Serial.begin(115200);
mcp2515.reset();
//At the Bitrate of 500kbps with the 80 MHZ
Clock frequency
mcp2515.setBitrate(CAN_500KBPS, MCP_8MHZ);
mcp2515.setNormalMode();
Serial.println("------- CAN Read
----------");
Serial.println("ID DLC
DATA");
}
void loop()
{
if (mcp2515.readMessage(&canMsgr) ==
MCP2515::ERROR_OK)
{
//BCM CAN Message Data Recption
if (canMsgr.can_id == 0x405)
{
//printing data
for (int i = 0; i < canMsgr.can_dlc;
i++)
{
BCMmsg_405[i] = canMsgr.data[i];
}
if (canMsgr.can_id == 0x405)
{
Serial.print(canMsgr.can_id, HEX);
Serial.print(" ");
Serial.print(canMsgr.can_dlc, HEX);
Serial.print(" ");
}
for (int i = 0; i < canMsgr.can_dlc;
i++)
{
Serial.print(BCMmsg_405[i]);
Serial.print(" ");
}
Serial.println();
for (int i = 0; i <= 7; i++)
{
if (BCMmsg_405[0] & (1 << i))
{
if (i == 0)
{
BCM_FogFront = 1;
Serial.println("Front Fog Lamp
ON ");
}
if (i == 1)
{
BCM_VehicleArmed = 1;
Serial.println("Vehicle Armed Lamp
ON");
}
if (i == 2 )
{
BCM_FogRear = 1;
Serial.println("Rear Fog Lamp
ON");
}
if (i == 3 )
{
BCM_HeadHighBeam = 1;
Serial.println("HEAD_LAMP_HIGH_BEAM
ON ");
}
if (i == 4 || i == 5)
{
if (i == 4)
{
BCM_HazardLampLeft[0] = 1;
}
else
{
BCM_HazardLampLeft[1] = 1;
}
}
if (i == 6 || i == 7)
{
if (i == 6)
{
BCM_HazardLampRight[0] = 1;
}
else
{
BCM_HazardLampRight[1] = 1;
}
}
}
else if (0)
{
if (i == 0)
{
BCM_FogFront = 0;
Serial.println("Front Fog Lamp
OFF");
}
if (i == 1)
{
BCM_VehicleArmed = 0;
Serial.println("Vehicle Armed
Lamp OFF");
}
if (i == 2)
{
BCM_FogRear = 0;
Serial.println("Rear Fog Lamp
OFF");
}
if (i == 3)
{
BCM_HeadHighBeam = 0;
Serial.println("HEAD_LAMP_HIGH_BEAM off ");
}
if (i == 4 || i == 5)
{
if (i == 4)
{
BCM_HazardLampLeft[0] = 0;
}
else
{
BCM_HazardLampLeft[1] = 0;
}
}
if (i == 6 || i == 7)
{
if (i == 6)
{
BCM_HazardLampRight[0] = 0;
}
else
{
BCM_HazardLampRight[1] = 0;
}
}
}
}
for (int i = 0; i <= 7; i++)
{
if (BCMmsg_405[1] & (1 << i))
{
if (i == 0)
{
BCM_SwitchFrontRight = 1;
BCM_DoorAjar = 1;
Serial.println("Door Ajar
Warning Lamp ON");
}
if (i == 1)
{
BCM_SwitchFrontLeft = 1;
BCM_DoorAjar = 1;
Serial.println("Door Ajar
Warning Lamp ON");
}
if (i == 2 )
{
BCM_SwitchRearLeft = 1;
BCM_DoorAjar = 1;
Serial.println("Door Ajar
Warning Lamp ON");
}
if (i == 3 )
{
BCM_SwitchRearRight = 1;
BCM_DoorAjar = 1;
Serial.println("Door Ajar
Warning Lamp ON");
}
if (i == 4)
{
BCM_DoorTailGate = 1;
BCM_DoorAjar = 1;
Serial.println("Tail Gate Open
Lamp");
}
if (i == 5)
{
BCM_LowWasherFluid = 1;
Serial.println("Low Washer Fluid
Lamp ON");
}
}
else if (0)
{
if (i == 0)
{
BCM_SwitchFrontRight = 0;
BCM_DoorAjar = 0;
Serial.println("Door Ajar
Warning Lamp OFF");
}
if (i == 1)
{
BCM_SwitchFrontLeft = 0;
BCM_DoorAjar = 0;
Serial.println("Door Ajar
Warning Lamp OFF");
}
if (i == 2)
{
BCM_SwitchRearLeft = 0;
BCM_DoorAjar = 0;
Serial.println("Door Ajar
Warning Lamp OFF");
}
if (i == 3)
{
BCM_SwitchRearRight = 0;
BCM_DoorAjar = 0;
Serial.println("Door Ajar
Warning Lamp OFF");
}
if (i == 4)
{
BCM_DoorTailGate = 0;
BCM_DoorAjar = 0;
Serial.println("Tail Gate Open
Lamp OFF");
}
if (i == 5)
{
BCM_LowWasherFluid = 0;
Serial.println("Low Washer
Fluid Lamp OFF");
}
}
}
{
if ( BCM_HazardLampLeft[0] == 0
&& BCM_HazardLampLeft[1] == 0)
{
Serial.println("Hazard Lamp Left
OFF");
}
else if ( BCM_HazardLampLeft[0] == 0
&& BCM_HazardLampLeft[1] == 1)
{
Serial.println("Hazard Lamp Left
SLOW BLINK");
}
else if ( BCM_HazardLampLeft[0] == 1
&& BCM_HazardLampLeft[1] == 0)
{
Serial.println("Hazard Lamp Left
FAST BLINK(MALFUNCTION)");
}
else if ( BCM_HazardLampLeft[0] == 1
&& BCM_HazardLampLeft[1] == 1)
{
Serial.println("Reserved");
}
}
{
if (BCM_HazardLampRight[0] == 0
&& BCM_HazardLampRight[1] == 0)
{
Serial.println("Hazard Lamp
Right OFF");
}
else if (BCM_HazardLampRight[0] == 0
&& BCM_HazardLampRight[1] == 1)
{
Serial.println("Hazard Lamp
Right SLOW BLINK");
}
else if (BCM_HazardLampRight[0] == 1
&& BCM_HazardLampRight[1] == 0)
{
Serial.println("Hazard Lamp
Right FAST BLINK(MALFUNCTION)");
}
else if (BCM_HazardLampRight[0] == 1
&& BCM_HazardLampRight[1] == 1)
{
Serial.println("Reserved");
}
}
//EMS MESSAGE DATA RECEPTION
if (canMsgr.can_id == 0x410)
{
Serial.print(canMsgr.can_id, HEX);
Serial.print(" ");
Serial.print(canMsgr.can_dlc, HEX);
Serial.println(" ");
{
for (int i = 0; i <
canMsgr.can_dlc; i++)
{
EMSmsg_410[i] = canMsgr.data[i];
}
for (int i = 0; i <
canMsgr.can_dlc; i++)
{
Serial.print(EMSmsg_410[i], HEX);
Serial.print(" ");
}
Serial.println();
for (int i = 0; i <= 7; i++)
{
if (EMSmsg_410[0] & (1 <<
i))
{
if (i == 0)
{
EMS_GlowPlug = 1;
Serial.println("Glow Plug
Lamp ON");
}
if (i == 1)
{
EMS_WaterinFuel = 1;
Serial.println("Water-in-Fuel Lamp ON");
}
if (i == 2 || i == 3)
{
if (i == 2)
{
EMS_CruiseControl[0] = 1;
}
else
{
EMS_CruiseControl[1] = 1;
}
}
if (i == 4)
{
EMS_EngineOilPress = 1;
Serial.println("Engine Oil
Pressure Lamp ON");
}
if (i == 5 || i == 6)
{
if (i == 5)
{
EMS_CheckEngine[0] = 1;
}
else
{
EMS_CheckEngine[1] = 1;
}
}
if (i == 7)
{
EMS_OBDCheck = 1;
Serial.println("OBD Check
Lamp ON");
}
}
else if (0)
{
if (i == 0)
{
EMS_GlowPlug = 0;
Serial.println("Glow Plug
Lamp OFF");
}
if (i == 1)
{
EMS_WaterinFuel = 0;
Serial.println("Water-in-Fuel Lamp OFF");
}
if (i == 2 || i == 3)
{
if (i == 2)
{
EMS_CruiseControl[0] = 0;
}
else
{
EMS_CruiseControl[1] = 0;
}
}
if (i == 4)
{
EMS_EngineOilPress = 0;
Serial.println("Engine Oil
Pressure Lamp OFF");
}
if (i == 5 || i == 6)
{
if (i == 5)
{
EMS_CheckEngine[0] = 0;
}
else
{
EMS_CheckEngine[1] = 0;
}
}
if (i == 7)
{
EMS_OBDCheck = 0;
Serial.println("OBD Check
Lamp OFF");
}
}
}
for (int i = 0; i <= 7; i++)
{
if (EMSmsg_410[1] & (1 <<
i))
{
EMS_EngineSpeed[i] = 1;
}
else
{
EMS_EngineSpeed[i] = 0;
}
}
for (int i = 0; i <= 7; i++)
{
if (EMSmsg_410[2] & (1 <<
i))
{
if (i == 0)
{
EMS_StartStop = 1;
Serial.println("Start/Stop
Lamp OFF");
}
if (i == 1)
{
EMS_BatteryCharging = 1;
Serial.println("Battery
Charging Lamp OFF");
}
if (i == 2)
{
EMS_DPFLamp = 1;
Serial.println("DPF
Warning Lamp OFF");
}
if (i == 3)
{
EMS_DEFLamp = 1;
Serial.println("DEF
Warning Lamp OFF");
}
if (i == 4)
{
EMS_ReducedPower = 1;
Serial.println("Reduced
Power Lamp OFF");
}
}
else if (0)
{
if (i == 0)
{
EMS_StartStop = 0;
Serial.println("Start/Stop
Lamp OFF");
}
if (i == 1)
{
EMS_BatteryCharging = 0;
Serial.println("Battery
Charging Lamp OFF");
}
if (i == 2)
{
EMS_DPFLamp = 0;
Serial.println("DPF
Warning Lamp OFF");
}
if (i == 3)
{
EMS_DEFLamp = 0;
Serial.println("DEF
Warning Lamp OFF");
}
if (i == 4)
{
EMS_ReducedPower = 0;
Serial.println("Reduced
Power Lamp OFF");
}
}
}
if (EMS_CruiseControl[0] == 0
&& EMS_CruiseControl[1] == 0)
{
Serial.println("CRUISE_CONTROL
OFF");
}
else if (EMS_CruiseControl[0] == 0
&& EMS_CruiseControl[1] == 1)
{
Serial.println("CRUISE_CONTROL
ON");
}
else if (EMS_CruiseControl[0] == 1
&& EMS_CruiseControl[1] == 0)
{
Serial.println("Cruise Control
FAST BLINK(MALFUNCTION)");
}
else if (EMS_CruiseControl[0] == 1
&& EMS_CruiseControl[1] == 1)
{
Serial.println("Reserved");
}
}
{
if (EMS_CheckEngine[0] == 0
&& EMS_CheckEngine[1] == 0)
{
Serial.println("CHECK_ENGINE
LAMP OFF");
}
else if (EMS_CheckEngine[0] == 0
&& EMS_CheckEngine[1] == 1)
{
Serial.println("CHECK_ENGINE
LAMP ON");
}
else if (EMS_CheckEngine[0] == 1
&& EMS_CheckEngine[1] == 0)
{
Serial.println("Check Engine
Lamp BLINK(MALFUNCTION)");
}
else if (EMS_CheckEngine[0] == 1
&& EMS_CheckEngine[1] == 1)
{
Serial.println("Reserved");
}
}
}
//EPS MESSAGE DATA RECEPTION
if (canMsgr.can_id == 0x415)
{
Serial.print(canMsgr.can_id, HEX);
Serial.print(" ");
Serial.print(canMsgr.can_dlc, HEX);
Serial.print(" ");
for (int i = 0; i < canMsgr.can_dlc;
i++)
{
EPSmsg_415 = canMsgr.data[i];
}
Serial.print(EPSmsg_415, HEX);
Serial.print(" ");
Serial.println();
if (EPSmsg_415 & (1 << 0))
{
EPS_PowerSteering = 1;
Serial.print("EPS Warning Lamp
ON");
}
else
{
EPS_PowerSteering = 0;
Serial.print("EPS Warning Lamp
ON");
}
}
//ESP MESSAGE DATA RECEPTION
if (canMsgr.can_id == 0x420)
{
Serial.print(canMsgr.can_id, HEX);
Serial.print(" ");
Serial.print(canMsgr.can_dlc, HEX);
Serial.print(" ");
for (int i = 0; i < canMsgr.can_dlc;
i++) {
ESPmsg_420[i] = canMsgr.data[i];
}
for (int i = 0; i < canMsgr.can_dlc;
i++)
{
Serial.print(ESPmsg_420[i], HEX);
Serial.print(" ");
}
//The 'random' function used here
//will randomly generate a value
between 0 to 250(assume in KMPH)
ESPmsg_420[0] = random(0, 250);
Serial.println();
for (int i = 0; i <= 7; i++)
{
if (ESPmsg_420[0] & (1 <<
i))
{
ESP_VehicleSpeed[i] = 1;
}
else if (0)
{
ESP_VehicleSpeed[i] = 0;
}
}
for (int i = 0; i <= 7; i++)
{
if (ESPmsg_420[1] & (1 <<
i))
{
ESP_WheelFrontLeftSpeed[i] = 1;
}
else if (0)
{
ESP_WheelFrontLeftSpeed[i] = 0;
}
}
for (int i = 0; i <= 7; i++)
{
if (ESPmsg_420[2] & (1 <<
i))
{
ESP_WheelFrontRightSpeed[i] = 1;
}
else if (0)
{
ESP_WheelFrontRightSpeed[i] = 0;
}
}
for (int i = 0; i <= 7; i++)
{
if (ESPmsg_420[3] & (1 <<
i))
{
ESP_WheelRearLeftSpeed[i] = 1;
}
else if (0)
{
ESP_WheelRearLeftSpeed[i] = 0;
}
}
for (int i = 0; i <= 7; i++)
{
if (ESPmsg_420[4] & (1 <<
i))
{
ESP_WheelRearRightSpeed[i] = 1;
}
else if (0)
{
ESP_WheelRearRightSpeed[i] = 0;
}
}
for (int i = 0; i <= 7; i++)
{
if (ESPmsg_420[5] & (1 <<
i))
{
if (i == 0)
{
ESP_VehicleOverspeed = 1;
Serial.println("Vehicle Over
Speed Lamp ON");
}
if (i == 1)
{
ESP_HandBrake = 1;
Serial.println("Parking
Brake Lamp ON");
}
if (i == 2)
{
ESP_ABS = 1;
Serial.println("ABS Warning
Lamp ON");
}
if (i == 3 || i == 4)
{
if (i == 3)
{
ESP_ESPLamp[0] = 1;
}
else
{
ESP_ESPLamp[1] = 1;
}
}
}
else if (0)
{
if (i == 0)
{
ESP_VehicleOverspeed = 0;
Serial.println("Vehicle Over
Speed Lamp OFF");
}
if (i == 1)
{
ESP_HandBrake = 0;
Serial.println("Parking
Brake Lamp ON");
}
if (i == 2)
{
ESP_ABS = 0;
Serial.println("ABS Warning
Lamp ON");
}
if (i == 3 || i == 4)
{
if (i == 3)
{
ESP_ESPLamp[0] = 0;
}
else
{
ESP_ESPLamp[1] = 0;
}
}
}
}
}
{
if (ESP_ESPLamp[0] == 0 &&
ESP_ESPLamp[1] == 0)
{
Serial.println("ESP_WARN_ LAMP
OFF");
}
else if (ESP_ESPLamp[0] == 0 &&
ESP_ESPLamp[1] == 1)
{
Serial.println("ESP_WARN LAMP
ON");
}
else if (ESP_ESPLamp[0] == 1 &&
ESP_ESPLamp[1] == 0)
{
Serial.println("ESP_WARN LAMP
FAST BLINK(MALFUNCTION)");
}
else if (ESP_ESPLamp[0] == 1 &&
ESP_ESPLamp[1] == 1)
{
Serial.println("Reserved");
}
}
//SRS MESSAGE DATA RECEPTION
if (canMsgr.can_id == 0x430)
{
Serial.print(canMsgr.can_id, HEX);
Serial.print(" ");
Serial.print(canMsgr.can_dlc, HEX);
Serial.print(" ");
SRSmsg_430 = canMsgr.data[0];
Serial.print(SRSmsg_430, HEX);
Serial.print(" ");
Serial.println();
for (int i = 0; i <= 2; i++)
{
if (SRSmsg_430 & (1 << i))
{
if (i == 0)
{
SRS_SeatBelt = 1;
Serial.print("Seat Belt Lamp
ON");
}
if (i == 1)
{
SRS_PassAirbagCutOff = 1;
Serial.print("Passenger
Airbag Cut-Off Lamp ON");
}
if (i == 2)
{
SRS_AirBag = 1;
Serial.print("Airbag Lamp
ON");
}
}
else if (0)
{
if (i == 0)
{
SRS_SeatBelt = 0;
Serial.print("Seat Belt
OFF");
}
if (i == 1)
{
SRS_PassAirbagCutOff = 0;
Serial.print("Passenger
Airbag Cut-Off Lamp OFF");
}
if (i == 2)
{
SRS_AirBag = 0;
Serial.print("Airbag Lamp
OFF");
}
}
}
}
//TCCU MESSAGE DATA RECEPTION
if (canMsgr.can_id == 0x435)
{
Serial.print(canMsgr.can_id, HEX);
Serial.print(" ");
Serial.print(canMsgr.can_dlc, HEX);
Serial.print(" ");
TCCMmsg_435 = canMsgr.data[0];
Serial.print(TCCMmsg_435, HEX);
Serial.print(" ");
Serial.println();
for (int i = 0; i <= 2; i++)
{
if (TCCMmsg_435 & (1 << i))
{
if (i == 0 || i == 1)
{
TCCM_FWDWarn[i] = 1;
Serial.println("Four-Wheel-Drive Warning Lamp");
}
if (i == 2)
{
TCCM_FWDLock = 1;
Serial.println("Four-Wheel-Drive Lock Lamp OFF");
}
}
else if (0)
{
if (i == 0 || i == 1)
{
TCCM_FWDWarn[i] = 0;
Serial.println("Four-Wheel-Drive
Warning Lamp");
}
if (i == 2)
{
TCCM_FWDLock = 0;
Serial.println("Four-Wheel-Drive Lock Lamp OFF");
}
}
}
}
//TCU MESSAGE DATA RECEPTION
if (canMsgr.can_id == 0x440)
{
Serial.print(canMsgr.can_id, HEX);
Serial.print(" ");
Serial.print(canMsgr.can_dlc, HEX);
Serial.print(" ");
TCUmsg_440 = canMsgr.data[0];
Serial.print(TCUmsg_440, HEX);
Serial.print(" ");
Serial.println();
for (int i = 0; i <= 0; i++)
{
if (TCUmsg_440 & (1 << i))
{
if (i == 0)
{
TCU_TransmTemp = 1;
Serial.print("Transmission
Temperature Warning Lamp ON");
}
}
else
{
if (i == 0)
{
TCU_TransmTemp = 0;
Serial.print("Transmission
Temperature Warning Lamp OFF");
}
}
}
}
//TPMS MESSAGE DATA RECEPTION
if (canMsgr.can_id == 0x445)
{
Serial.print(canMsgr.can_id, HEX);
Serial.print(" ");
Serial.print(canMsgr.can_dlc, HEX);
Serial.print(" ");
for (int i = 0; i <=
canMsgr.can_dlc; i++)
{
TPMSmsg_445[i] = canMsgr.data[i];
}
for (int i = 0; i <=
canMsgr.can_dlc; i++)
{
Serial.print(TPMSmsg_445[i], HEX);
Serial.print(" ");
}
Serial.println();
for (int i = 0; i <= 7; i++)
{
if (TPMSmsg_445[0] & (1 <<
i))
{
if (i >= 0 || i <= 3)
{
TPMS_TyreFrontLeftPress[i] = 1;
}
if (i > 3 || i <= 7)
{
TPMS_TyreFrontRightPress[i] = 1;
}
}
else if (0)
{
if (i >= 0 || i <= 3)
{
TPMS_TyreFrontLeftPress[i] = 0;
}
if (i > 3 || i <= 7)
{
TPMS_TyreFrontRightPress[i] = 0;
}
}
}
for (int i = 0; i <= 7; i++)
{
if (TPMSmsg_445[1] & (1 <<
i))
{
if (i >= 0 || i <= 3)
{
TPMS_TyreRearRightPress[i] = 1;
}
if (i > 3 || i <= 7)
{
TPMS_TyreRearRightPress[i] = 1;
}
}
else if (0)
{
if (i >= 0 || i <= 3)
{
TPMS_TyreRearLeftPress[i] = 0;
}
if (i > 3 || i <= 7)
{
TPMS_TyreRearLeftPress[i] = 0;
}
}
}
for (int i = 0; i == 0; i++)
{
if (TPMSmsg_445[2] & (1 <<
i))
{
if (i == 0)
{
TPMS_TiretronicsLamp = 1;
Serial.println("Tiretronics
Lamp OFF");
}
}
else if (0)
{
if (i == 0)
{
TPMS_TiretronicsLamp = 0;
Serial.println("Tiretronics
Lamp OFF");
}
}
}
}
//BCMMsg1 MESSAGE 406 TRANSMISSION
BCMMsg1.can_id = 0x406;
BCMMsg1.can_dlc = 2;
BCMMsg1.data[1] = 0x01;
BCMMsg1.data[0] = 0x02;
mcp2515.sendMessage(&BCMMsg1);
//EMSMsg2 MESSAGE 411 TRANSMISSION
EMSMsg2.can_id = 0x411;
EMSMsg2.can_dlc = 3;
EMSMsg2.data[0] = 0x01;
EMSMsg2.data[1] = 0x02;
EMSMsg2.data[2] = 0x04;
mcp2515.sendMessage(&EMSMsg2);
//EPSMsg3 MESSAGE 416 TRANSMISSION
EPSMsg3.can_id = 0x416;
EPSMsg3.can_dlc = 1;
EPSMsg3.data[0] = 0x01;
mcp2515.sendMessage(&EPSMsg3);
//ESPMsg4 MESSAGE 421 TRANSMISSION
ESPMsg4.can_id = 0x421;
ESPMsg4.can_dlc = 6;
ESPMsg4.data[0] = 0x01;
ESPMsg4.data[1] = 0x02;
ESPMsg4.data[2] = 0x04;
ESPMsg4.data[3] = 0x01;
ESPMsg4.data[4] = 0x02;
ESPMsg4.data[5] = 0x04;
//SRSMsg5 MESSAGE 431 TRANSMISSION
SRSMsg5.can_id = 0x431;
SRSMsg5.can_dlc = 1;
SRSMsg5.data[0] = 0x01;
mcp2515.sendMessage(&SRSMsg5);
//TCCUMsg6 MESSAGE 436 TRANSMISSION
TCCUMsg6.can_id = 0x436;
TCCUMsg6.can_dlc = 1;
TCCUMsg6.data[0] = 0x01;
mcp2515.sendMessage(&TCCUMsg6);
//TCUMsg7 MESSAGE 441 TRANSMISSION
TCUMsg7.can_id = 0x441;
TCUMsg7.can_dlc = 1;
TCUMsg7.data[0] = 0x01;
mcp2515.sendMessage(&TCUMsg7);
//TPMSMsg8 MESSAGE 446 TRANSMISSION
TPMSMsg8.can_id = 0x446;
TPMSMsg8.can_dlc = 3;
TPMSMsg8.data[0] = 0x01;
TPMSMsg8.data[1] = 0x02;
TPMSMsg8.data[2] = 0x03;
mcp2515.sendMessage(&TPMSMsg8); }
}
}
/**********END OF
PROGRAM*********/
CAN COMMUNICATION MATRIX
Created by: NITHISH KUMAR
Software used: Vector CANdb++
OVERVIEW:
Above CAN DBC shows the various networks nodes, ECUs,
Messages and related Signals. By using these Messages, Signals can be
transmitted and received by various ECUs.
NETWORK NODES:
In this database, I
have used various Network nodes like,
·
BCM(Body
Control Module)
·
EMS(Engine
Management System)
·
EPS(Electric
Power Steering)
·
ESP(Electronic
Stability Control)
·
IC(Instrument
Cluster)
·
VIS(Vehicle
Infotainment System)
·
PAS(Parking
Assist System)
·
SRS(Supplemental
Restraint System)
·
TCCU(Transfer
Case Control Unit)
·
TCU(Transmission
Control Unit)
·
TPMS(Tyre
Pressure Monitoring System)
CAN MESSAGES:
Various CAN
messages and Signals created in the DBC are being mapped with a unique CAN
message ID and are assigned to their respective transmitting and receiving
ECU’s. The Message layout is arranged inside the CAN message with required Value
tables and Attributes. The layout of the message EMSmsg (0x410) and its Signals
are given below,
·
Battery
Charging lamp
·
Check
Engine Lamp
·
Cruise
Control Lamp
·
DEF
Indicator Lamp
·
DPF
Indicator Lamp
·
ECO
Mode Lamp
·
Engine
Coolant Temperature Lamp
·
Engine
Oil Pressure Lamp
·
Glow
Plug Lamp
·
Low
Fuel Lamp
·
OBD
Check Lamp
·
Reduced
Power Lamp
·
Engine
Speed Indication
·
Start/Stop
Lamp
CAN SIGNAL:
It is an individual
piece of data contained within the Can frame data field. Data field can contain
up to 8 bits of data, a signal CAN frame can contains 0 to 64 individual
signals. The below signal ‘EMS_BatteryCharging’
takes 2 bit of length to do its task (ON and OFF). Many signals may require
more than 1 bit of data length for performing two or more tasks.
The CAN DBC files is the type of data that
communicates over a CAN bus, these files can be helpful in identifying the data
within the CAN frame by describing it. It contains of information for decoding
raw CAN bus to physical value thus functioning as a signal library.
